11 Belgrave Road is being designed to meet the highest sustainability and wellbeing credentials. On completion in late 2023, it will take its place as one of London's most sustainable office buildings.

Working for Quadrum Global and alongside Eric Parry Architects, Heyne Tillett Steel and Gillespies, we are appointed as MEP Engineers and strategic sustainability consultants for this transformative project.

11 Belgrave Road will deliver 108,000 sq ft. of Grade A workspace, 14,000 sq. ft of communal spaces and best-in-class facilities, including a 3,300 sq. ft café and 4,600 sq ft gym. In addition, 13,000 sq. ft of exceptional green space will be seamlessly woven throughout.

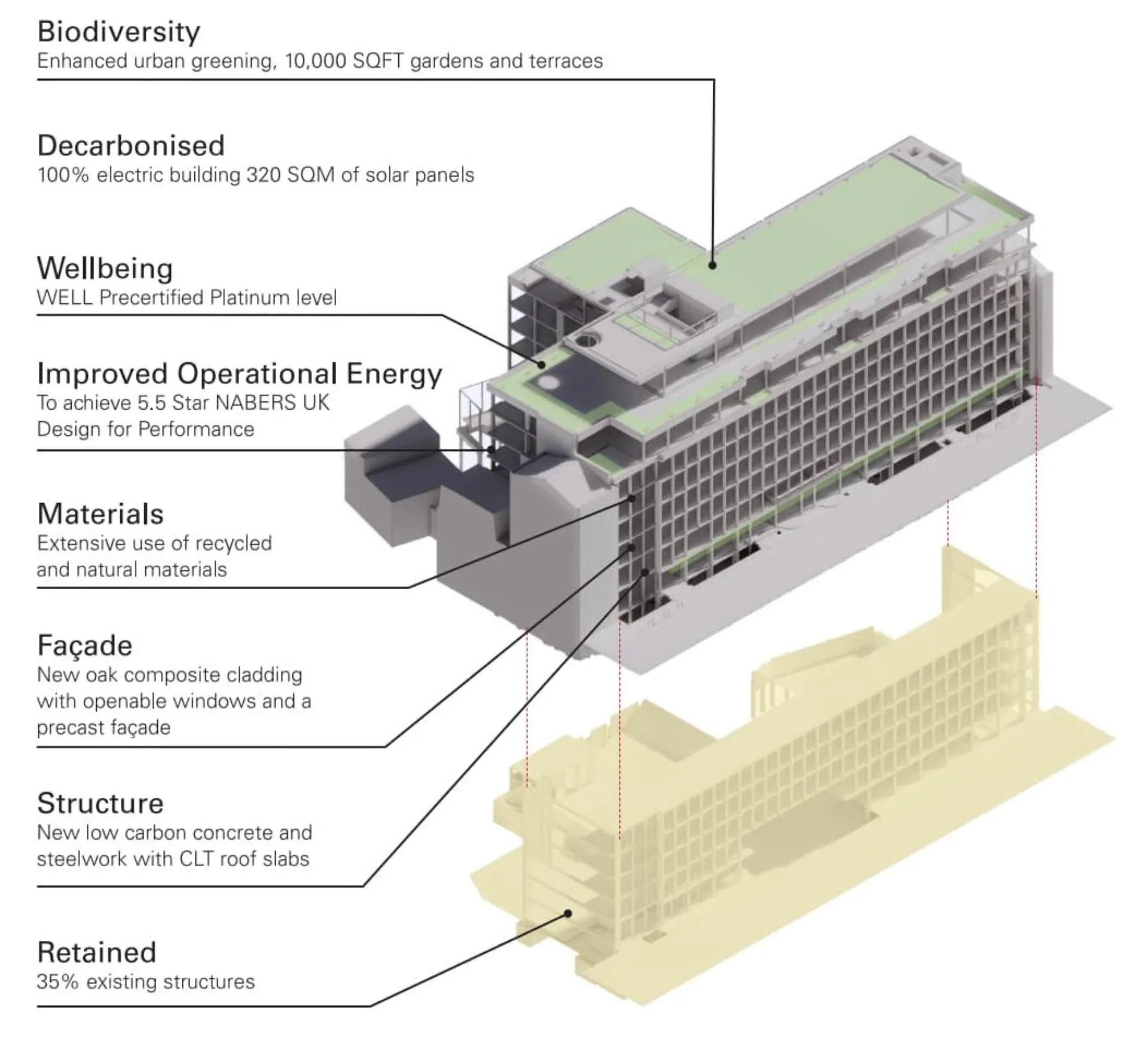

We are leading the major redevelopment's aspiration to be net zero carbon in both construction and operation, and to surpass the RIBA 2030 Climate Challenge target by 38%. The retention of a significant portion of the existing concrete frame of the building, as well as efforts to reduce environmental impact throughout the project, have resulted in predicted embodied carbon emissions of 466kg CO2 per m2 for the project, with 324kg CO2 per m2 for the refurbished areas – beneath the LETI target of 350 kg CO2 per m2.

It is the first project in the UK to achieve a NABERS UK 5.5 design-reviewed target rating for in-use energy efficiency, which we are also leading. In addition, 11 Belgrave Road has been pre-certified WELL Platinum and achieved a design stage BREEAM Outstanding rating.

Our MEP strategy is focused on minimising carbon in operation and arming the building users with information and flexibility to aid this. Passive ventilation and thermal mass are supported by "smart" mechanical ventilation with display screens to inform occupants of real-time energy use. Heating and cooling is provided by ASHPs located in the basement, which freed up an additional floor of useable space, and carbon filters improve air quality for the building users.

We are also supporting Quadrum with targeting Wiredscore platinum and Smartscore platinum, which gives potential tenants assurance that the building will deliver an exceptional user experience, be adaptable to a particular tenant’s needs and be fully future-proofed so that the building can continue being used for many years to come.

"11 Belgrave Road is an exemplar for how to convert an existing building that is not currently fit for purpose into a high quality, low operational and low embodied carbon office space.

We're excited to be leading on NABERS - the only office-specific, in use, energy efficiency rating system - and 11 Belgrave Road's pre-certified rating of 5.5 is the highest of any building in the UK."
- Henry Pelly, Principal Sustainability Consultant and Partner at Max Fordham

Architect

Eric Parry Architects

Value

Undisclosed

Completion

2023

Client

Quadrum Global

(c) Holistic Info
The retention of a significant portion of the existing concrete frame of the building, as well as efforts to reduce environmental impact throughout the project, has resulted in embodied carbon emissions beneath the LETI target.

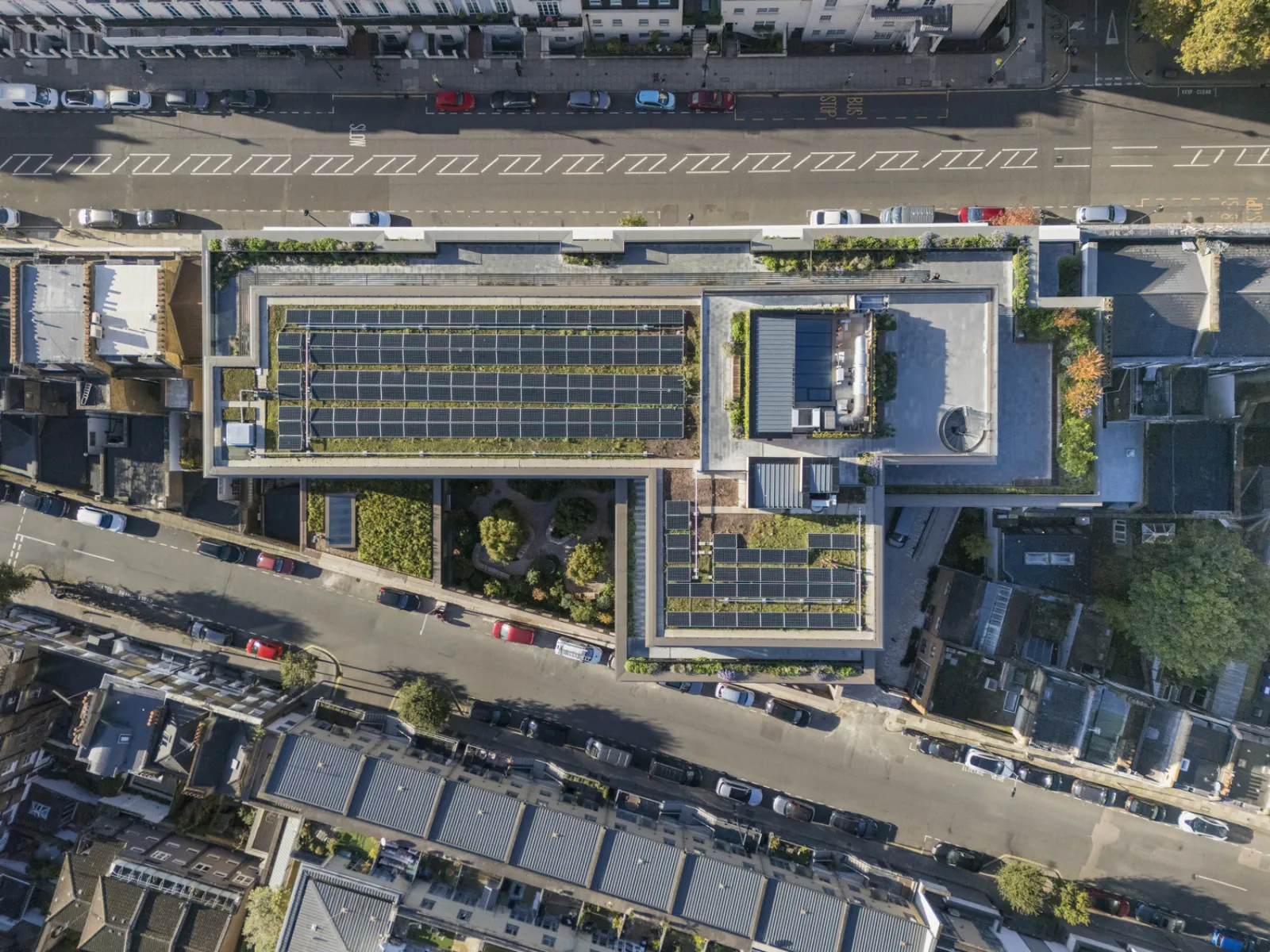

13,000 sq. ft of exceptional green space will be seamlessly woven throughout the building including 2,600 sq ft private garden at ground floor, spacious indoor and outdoor amenity spaces, private terraces, and a rooftop platform offering 360-degree views over London.
The new Ecclestone Square façade reintroduces a lightwell in front of the building and reinstates the railing line, in common with the neighbouring houses. This combines with a new rhythm of porches and terraces to anchor the architecture in the character of the square and the wider Pimlico conservation area.
